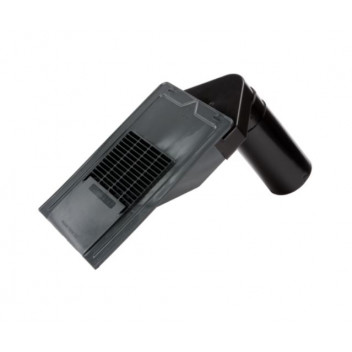

Ubbink 294600 UB39 Vepac Inline Service Terminal Tile 380mm x 285mm
Product code: 10296390
Available to Order
- In-line design
- Complete with Soil/Vent
- Complete with mechanical extractAdaptor
- Minimum pitch of 25˚
- UV Stabilised High Impact Polystyrene
- Free vent area = 7,800mm²
Ubbink 100130294600 UB39 380x285 Vepac Inline Service Terminal Tile
Ubbink's vepac terminal is an in-line service terminal for use in slated roofs in pitches of 25° and over. The UB39 is suitable for terminating 110mm diameter mechanical extract systems and soil & vent systems where an external pressure test is not required. UB39 unit's have a free vent area of 7,800mm² and a pressure/ airflow resistance reading of 19.0 Pascals (reading taken at 100m³/h).
Product attributes
| Width | 285 mm |
|---|---|
| Length | 380 mm |
| Weight | 0.87 kg |
| Colour | Anthracite |
| Finish | Smooth |
| Pack Size | 1 |
| Manufacturer | Ubbink Ltd |
| Type | Terminal |
| Min Pitch | 25° |
| Material | Polyethylene and Polystyrene |
| Application | Roofs |
| Supplier Part Number | 100130294600 |
| Name | Inline Service Terminal Tile 380mm |
| Dimensions | 285mm x 380mm |
